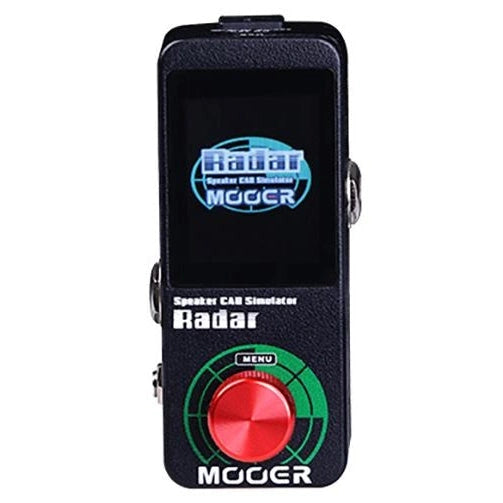

MOOER Radar Speaker Cab Simulator
Radar
The MOOER RADAR is a full-featured professional speaker simulator which can be a permanent resident at the end of your pedalboard. Not only does it carry 30 cab models but it also has optional microphone and power amp simulation. Ideal for recording or hooked up to your favourite headphones for practice. The RADAR will transform your pedalboard into a complete guitar rig.
Main Features
* 30 different speaker cab models
*11 mic models
* 4 power amp models
*Customizable EQ stage
* Capable of loading custom IRS
*Store and recall up to 36 user presets
* Connect to PC editor via USB
*Supports headphones and lineout
MOOER STUDIO EDITOR
Download the MOOER STUDIO software from our “Downloads & Firmware” page on the MOOERAUDIO website.
http://www.mooeraudio.com/?FirmwareUpdate.html
After installation, connect your device to the computer using a USB cable
Open the MOOER STUDIO software and select “Search Device”
Select your device from the drop-down menu
Select “Open Device”
FIRMWARE UPDATE
Connect your RADAR to the computer using a USB cable ·Press and hold the “MENU” and power on the RADAR This will boot RADAR into “Update Mode” ·Open the MOOER STUDIO software ·Press the “Search Device” button and then select “RADAR UPDATE” from the Device drop down menu ·Press the “Update” button and wait for the update to complete
SpecificationsInput: 1/4” mono audio jack.(Impedance: 100k Ω) Output: 1/4” mono audio jack (Impedance: 470 Ω) 1/8” stereo audio jack (Impedance: 10 Ω) Sampling rate: 44.1K Sampling accuracy:24bit Signal to noise ratio:100dB Frequency Range:20Hz~20KHz Power requirements: 12V DC Only use the power supply provided Current Draw:300mA Dimensions:93.5mm(D) x 42mm(W) x 52mm(H) Weight:150g
